Instock P3.91 Outdoor LED Rental Screen 500*1000mm LED Display Panel IP65 LED Video Wall for Events Wedding Church
تفاصيل المنتج:
| مكان المنشأ: | قوانغدونغ، الصين |
| اسم العلامة التجارية: | LED King |
| إصدار الشهادات: | CE FCC ISO |
| رقم الموديل: | في الهواء الطلق ص3.91 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | $170 |
| تفاصيل التغليف: | قضية الطيران |
| وقت التسليم: | جاهز للشحن |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 1-200 قطعة 4 أيام |
|
معلومات تفصيلية |
|||
| نظام التحكم: | نجمة نوفا | عمر: | 100000 ساعة |
|---|---|---|---|
| IC: | تشيبون ICN2153 | مواد مجلس الوزراء: | يموت الألومنيوم |
| وزن لوحة: | 12.2 كجم | معدل المسح: | 1/16S |
| إبراز: | P3.91 outdoor LED rental screen,IP65 weatherproof LED display,rental outdoor LED screen,IP65 weatherproof LED display,rental outdoor LED screen |
||
منتوج وصف

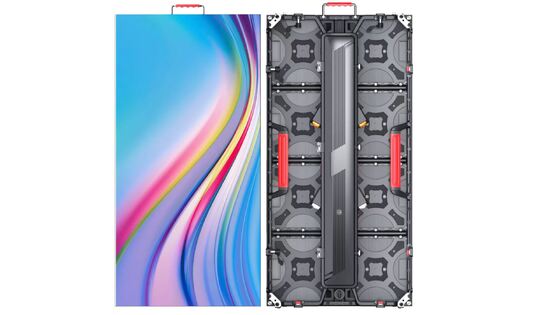

P3.91 Outdoor LED Rental Screen 500×1000mm LED Display Panel
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 250mm(W)×250mm(H) |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536 dot/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1921 |
| Pixel Resolution | 64dot×64dot |
| Max Power Consumption | 40W |
| Panel Weight | 0.6KG |
| Cabinet Specifications | |
|---|---|
| Cabinet Size | 500×1000mm |
| Cabinet Resolution | 128 dot×256 dot |
| Quantity of Panel | 8pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170/120° |
| Power Supply | AC110V/220V-5V60A |
| Max Power Consumption | 1200W/㎡ |
| Average power consumption | 600W/m² |
| Technical Signal Index | |
|---|---|
| Driving IC | ICN2153 |
| Scan Rate | 1/16S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096×4096×4096(16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4500-5000 cd/㎡ |
| Life Span | 100000Hours |
| Best Viewing Distance | 3-30M |
| Operating Temperature | -20℃~60℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Core Features and Advantages
- High-Brightness Energy Efficiency: Utilizes high-efficiency LEDs and dynamic energy-saving technology for high brightness and low power consumption, ensuring clear visibility day and night.
- Superior Image Quality: High refresh rate and high grayscale levels guarantee smooth, flicker-free visuals with no scan lines during recording.
- Rugged Durability: Die-cast aluminum housing with IP65/IP67 protection rating. Resistant to wind, rain, dust, and corrosion for harsh outdoor environments.
- Convenient Maintenance: Supports front/rear access with modular design. Rapid pinpointing and replacement of defective pixels/sections.
- Precise Color: Factory-calibrated pixel-by-pixel to ensure consistent screen-wide color and brightness for flawless display.
- Quick Installation: Precise alignment with seamless interlocking cabinets. Supports multiple mounting methods including suspended, stacked, and wall-mounted installations.
Application Scenarios
- Commercial Advertising: Building exteriors for shopping malls, offices, hotels to display brand ads and promotional content.
- Public Transportation Hubs: Bus stops, airports, train stations for route info, schedules, and announcements.
- Event Venues: Main/side screens for concerts, sports events, festivals with live streaming and replays.
- Architectural Media: Building facades for city image videos, light shows, and dynamic art displays.
- Temporary Events: Quick assembly for exhibitions, product launches, weddings with flexible installation.
- Public Information: City squares, parks for government notices, weather, and emergency alerts.
- Hospitality: Hotel entrances for welcome messages, meeting directions, and service info.
- Digital Signage: Standalone displays in parks and streets for area maps and business information.
Certifications
CE, FCC, and ISO certified for quality and safety standards.
Packaging
Outdoor P3.91 display cabinets are shipped in dedicated flight cases for safe transport, with optional custom logos for brand promotion.
