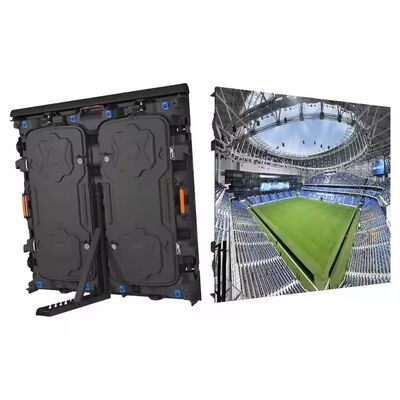

Hot Sale Outdoor P5 Waterproof Smd Led Display Screen for Soccer Football Stadiums Sports Led Video Wall Panel
تفاصيل المنتج:
| مكان المنشأ: | قوانغدونغ، الصين |
| اسم العلامة التجارية: | LED King |
| إصدار الشهادات: | CE FCC ISO |
| رقم الموديل: | في الهواء الطلق p5 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | $522/pc |
| تفاصيل التغليف: | حالة خشبية |
| وقت التسليم: | 15 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | وفقا لاحتياجاتك |
|
معلومات تفصيلية |
|||
| نظام التحكم: | نوفا ستار | حجم الخزانة: | 960mm*960mm |
|---|---|---|---|
| مادة الخزانة: | الألومنيوم المصبوب | وزن اللوحة: | 40 كجم |
| عمر: | 100000 ساعة | إيك: | تشيبون ICN2153 |
| إبراز: | P5 waterproof LED display screen,outdoor LED video wall panel,stadium sports LED display screen,outdoor LED video wall panel,stadium sports LED display screen |
||
منتوج وصف
P5 Outdoor Waterproof SMD LED Display Screen
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 320mm(W) × 160mm(H) |
| Pixel Pitch | 5mm |
| Pixel Density | 40,000 dots/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1921 |
| Pixel Resolution | 64 dots × 32 dots |
| Max Power Consumption | 40W |
| Panel Weight | 0.45KG |
| Cabinet Specifications | |
|---|---|
| Cabinet Size | 960mm × 960mm |
| Cabinet Resolution | 192 dots × 192 dots |
| Quantity of Panels | 18pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V60A |
| Max Power Consumption | 1200W/㎡ |
| Average Power Consumption | 600W/㎡ |
| Technical Signal Index | |
|---|---|
| Driving IC | ICN2153 |
| Scan Rate | 1/8S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096 × 4096 × 4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4500-5500 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 5-40M |
| Operating Temperature | -10℃ ~ 45℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Core Features and Advantages
- Ultra-High Brightness: With 4500-5500 cd/㎡ brightness, these displays remain clearly visible even in direct sunlight, ensuring optimal viewing from any angle.
- Exceptional Weather Resistance: IP65 rating provides complete protection against dust and water, enabling 24/7 stable operation in harsh outdoor conditions.
- Superior Motion Performance: High refresh rate (3840-7680Hz) and advanced grayscale deliver smooth, flicker-free visuals perfect for capturing fast-paced sports action.
Application Scenarios
- On-site Interaction: Fan cams, live raffles, and interactive segments to energize crowds and enhance stadium atmosphere
- Sponsor Advertising: High-definition rotation of sponsor ads and promotions during pre-game, halftime, and breaks
- Commercial Promotion: Display venue dining, souvenir shop promotions, and nearby commercial district events
- Public Notices: Critical safety guidelines, evacuation routes, weather warnings, and public service information
- Pre-game Entertainment: Light shows, team promotional videos, and visual spectacles to build audience excitement
Certifications
This product has obtained CE, FCC, and ISO certifications.
Packaging
Example Case
تريد أن تعرف المزيد من التفاصيل حول هذا المنتج
